尼龙自锁式扎带
* 产品介绍
产品材质：PA66注塑成型
产品特点：表面光滑、明亮；机械性能、抗老化性优良；耐酸、耐蚀，绝缘性好
防火等级：UL94-V2
操作温度：-35℃ to 85℃
产品颜色：白色、黑色；可定制其他颜色，有起订量。

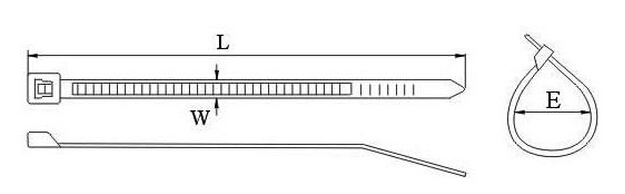

| 型 号ITEM.NO | L 长 | W 宽 | 捆扎范围 Bundle Diameter E (mm) | 拉力 Min.loop Tensile Stregth | ||
| INCH | mm | (mm) | LBS | KGS | ||
| 3*60 | 2 3/8" | 60 | 2.5 | 2-11 | 18 | 8 |
| 3*80 | 3 3/16" | 80 | 2.5 | 2-16 | 18 | 8 |
| 3*90 | 3 5/8" | 90 | 2.5 | 2-18 | 18 | 8 |
| 3*100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 |
| 3*120 | 4 3/4" | 120 | 2.5 | 2-30 | 18 | 8 |
| 3*140 | 5 1/2" | 140 | 2.5 | 2-33 | 18 | 8 |
| 3*150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 |
| 3*160 | 6 1/4" | 160 | 2.5 | 2-40 | 18 | 8 |
| 3*200 | 8" | 200 | 2.5 | 3-50 | 18 | 8 |
| 4*100 | 4" | 100 | 3.5 | 3-22 | 40 | 18 |
| 4*120 | 4 3/4" | 120 | 3.5 | 3-30 | 40 | 18 |
| 4*140 | 5 1/2" | 140 | 3.5 | 3-33 | 40 | 18 |
| 4*150 | 6" | 150 | 3.5 | 3-35 | 40 | 18 |
| 4*180 | 7" | 180 | 3.5 | 3-42 | 40 | 18 |
| 4*200 | 8" | 200 | 3.5 | 3-50 | 40 | 18 |
| 4*250 | 10" | 250 | 3.5 | 3-65 | 40 | 18 |
| 4*280 | 11" | 280 | 3.5 | 3-70 | 40 | 18 |
| 4*300 | 11 5/8" | 300 | 3.5 | 3-80 | 40 | 18 |
| 4*370 | 14 1/2" | 370 | 3.5 | 3-102 | 40 | 18 |
| 5*120 | 4 3/4" | 120 | 4.7 | 3-24 | 50 | 22 |
| 5*180 | 7" | 180 | 4.7 | 3-42 | 50 | 22 |
| 5*190 | 7 1/2" | 190 | 4.7 | 3-46 | 50 | 22 |
| 5*200 | 8" | 200 | 4.7 | 3-50 | 50 | 22 |
| 5*250 | 10" | 250 | 4.7 | 3-65 | 50 | 22 |
| 5*280 | 11" | 280 | 4.7 | 3-70 | 50 | 22 |
| 5*300 | 11 8/5" | 300 | 4.7 | 3-82 | 50 | 22 |
| 5*350 | 13 3/4" | 350 | 4.7 | 3-90 | 50 | 22 |
| 5*380 | 15" | 380 | 4.7 | 3-102 | 50 | 22 |
| 5*400 | 15 3/4" | 400 | 4.7 | 3-105 | 50 | 22 |
| 5*430 | 17" | 430 | 4.7 | 3-110 | 50 | 22 |
| 5*450 | 17 3/4" | 450 | 4.7 | 3-130 | 50 | 22 |
| 5*500 | 19 11/16" | 500 | 4.7 | 3-150 | 50 | 22 |
| 8*150 | 6" | 150 | 6.8 | 3-33 | 85 | 38 |
| 8*180 | 7" | 180 | 6.8 | 3-42 | 85 | 38 |
| 8*200 | 8" | 200 | 6.8 | 3-50 | 85 | 38 |
| 8*250 | 10" | 250 | 7.5 | 4-63 | 120 | 55 |
| 8*300 | 11 5/8" | 300 | 7.5 | 4-82 | 120 | 55 |
| 8*350 | 13 3/4" | 350 | 7.5 | 4-90 | 120 | 55 |
| 8*370 | 14 1/4" | 370 | 7.5 | 4-98 | 120 | 55 |
| 8*400 | 15 3/4" | 400 | 7.5 | 4-105 | 120 | 55 |
| 8*450 | 17 3/4" | 450 | 7.5 | 4-118 | 120 | 55 |
| 8*500 | 19 11/16" | 500 | 7.5 | 4-150 | 120 | 55 |
| 8*550 | 21 1/16" | 550 | 7.5 | 4-160 | 120 | 55 |
| 8*600 | 23 5/8" | 600 | 7.5 | 4-170 | 120 | 55 |
| 8*750 | 29 9/16" | 750 | 7.5 | 4-220 | 120 | 55 |
| 9*450 | 17 3/4" | 450 | 9.0 | 4-118 | 175 | 80 |
| 9*530 | 20 3/4" | 530 | 9.0 | 8-155 | 175 | 80 |
| 9*550 | 21 1/16" | 550 | 9.0 | 8-160 | 175 | 80 |
| 9*650 | 25 9/16" | 650 | 9.0 | 8-190 | 175 | 80 |
| 9*700 | 27 1/2" | 700 | 9.0 | 10-205 | 175 | 80 |
| 9*760 | 30" | 760 | 9.0 | 10-225 | 175 | 80 |
| 9*920 | 36 1/4" | 920 | 9.0 | 10-265 | 175 | 80 |
| 9*1020 | 40 1/6" | 1020 | 9.0 | 10-295 | 175 | 80 |
| 9*1150 | 45 1/4" | 1150 | 9.0 | 10-310 | 175 | 80 |
| 9*1220 | 48" | 1210 | 9.0 | 10-340 | 175 | 80 |
| 9*1350 | 53" | 1350 | 9.0 | 10-380 | 175 | 80 |
| 10*450 | 17 3/4" | 450 | 10.0 | 10-125 | 200 | 91 |
| 10*500 | 19 11/16" | 500 | 10.0 | 12-150 | 200 | 91 |
| 12*300 | 11 5/8" | 300 | 12.7 | 12-82 | 250 | 114 |
| 12*400 | 15 3/4" | 400 | 12.7 | 12-105 | 250 | 114 |
| 12*540 | 21 1/4" | 540 | 12.7 | 14-155 | 250 | 114 |
| 12*650 | 25 9/16" | 650 | 12.0 | 14-190 | 250 | 114 |
| 12*750 | 29 9/16" | 750 | 12.0 | 10-220 | 250 | 114 |
| 12*780 | 30 3/4" | 780 | 12.7 | 14-230 | 250 | 114 |
| 13*540 | 21 1/4" | 540 | 13.0 | 14-155 | 250 | 114 |
