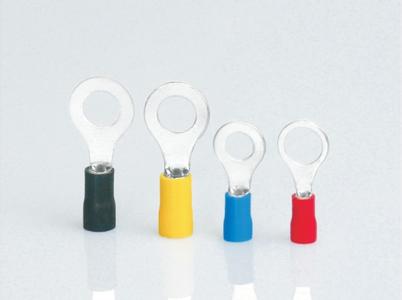

RV 圆形预绝缘端头
* 产品介绍
产品材质：采用优质紫铜冷压制成，导电性稳定良好，外部绝缘采用PVC或PA66制成
产品特点：表明电镀优质亚锡，绝缘套呈漏斗形，易于导线插入；耐压，防锈、防腐蚀时间延长
产品特性：接线层次分明、美观；压紧后不断裂不松开；-40℃耐热至105℃可正常使用
产品规格：见列表
使用方法：将电线剥开适当长度，插入端头接线部位，使用配套工具 友邦端子压线钳YYT-1（订货号733007）压紧即可。
说 明：可定制其他颜色，有起订量要求；S、M、L为不同宽度，适应不同的连接需求

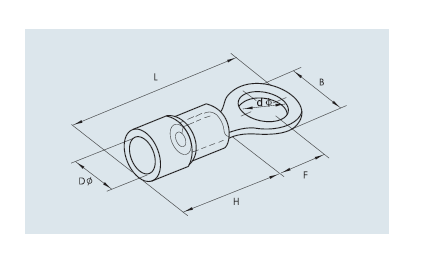

| 型 号 ITEM NO | 美制螺栓号 USA screw | 螺栓口直径 Screw dia.d2 (mm) | 尺寸 Dimension(mm) | 颜色 Color | ||||
| Ｂ | L | F | Ｈ | ＤФ | ||||
| 导线截面:0.5~1.5mm2(美国线规22~16) 最大电流:Imax=19A 材质:紫铜 材料厚度:0.75mm | ||||||||
| RV 1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | 红色 Red |
| RVS 1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
| RVM 1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
| RVL 1.25-3.5 | #6 | 4.3 | 8.0 | 21.5 | 7.0 | |||
| RVS 1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
| RVL 1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
| RV 1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
| RVL 1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | |||
| RV 1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
| RV 1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
| RV 1.25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.5 | |||
| 导线截面:1.5~2.5mm2(美国线规16~14) 最大电流:Imax=27A 材质:紫铜 材料厚度:0.8mm | ||||||||
| RV 2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | 蓝色 Blue |
| RVS 2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
| RVM 2-3.5 | #6 | 3.7 | 8.5 | 21.0 | 7.0 | |||
| RVL 2-3.5 | #6 | 3.7 | 6.6 | 22.5 | 7.75 | |||
| RVS 2-4 | #8 | 4.3 | 8.5 | 21.0 | 7.0 | |||
| RVL 2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
| RVS 2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
| RVL 2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
| RV 2-6 | 1/4 | 6.4 | 12.0 | 27.6 | 11.0 | |||
| RV 2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | |||
| RV 2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
| RV 2-12 | 1/2 | 13.0 | 19.2 | 35.4 | 16.5 | |||
| 导线截面:2.5~4mm2(美国线规14~12) 最大电流:Imax=37A 材质:紫铜 材料厚度:1.0mm | ||||||||
| RV 3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 13.0 | 6.2 | 黑色 Black |
| RVS 3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
| RVL 3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
| RV 3.5-6 | 1/4 | 6.4 | 12.0 | 27.9 | 7.7 | |||
| 导线截面:4~6mm2(美国线规12~10) 最大电流:Imax=48A 材质:紫铜 材料厚度:1.0mm | ||||||||
| RV 5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | 黄色Yellow |
| RVS 5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
| RVL 5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
| RV 5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
| RV 5.5-6 | 1/4 | 6.4 | 12.0 | 31.5 | 13.0 | |||
| RV 5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
| RV 5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
| RV 5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | |||
| 导线截面:6~10mm2(美国线规8) 最大电流:Imax=62A 材质:紫铜 材料厚度:1.2mm | ||||||||
| RV 8-4 | #8 | 4.3 | 8.8 | 23.8 | 10.9 | 15.5 | 7.2 | |
| RVS 8-5 | #10 | 5.3 | 8.8 | 23.8 | 10.9 | |||
| RVM 8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 | |||
| RVL 8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 | |||
| RVS 8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | |||
| RVL 8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 | |||
| RV 8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | |||
| RV 8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 | |||
| RV 8-12 | 1/2 | 13.0 | 22.0 | 39.5 | 20.1 | |||
| 导线截面:10~16mm2(美国线规6) 最大电流:Imax=88A 材质:紫铜 材料厚度:1.4mm | ||||||||
| RV 14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 20.5 | 9.0 | |
| RV 14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 | |||
| RVS 14-6 | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 | |||
| RVL 14-6 | 1/4 | 6.4 | 16.0 | 32.8 | 13.3 | |||
| RV 14-8 | 5/16 | 8.4 | 16.0 | 32.6 | 14.2 | |||
| RV 14-10 | 3/8 | 10.5 | 16.0 | 32.8 | 14.2 | |||
| RV 14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 | |||
| 导线截面:16~25mm2(美国线规4) 最大电流:Imax=115A 材质:紫铜 材料厚度:1.7mm | ||||||||
| RVS 22-5 | #10 | 5.3 | 12.2 | 32.6 | 14.5 | 24 | 11.5 | |
| RVL 22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 | |||
| RVS 22-6 | 1/4 | 6.4 | 12.2 | 32.6 | 14.5 | |||
| RVL 22-6 | 1/4 | 6.4 | 16.5 | 33.7 | 13.5 | |||
| RV 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 | |||
| RV 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 | |||
| RV 22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 | |||
| 导线截面:35~50mm2(美国线规2) 最大电流:Imax=160A 材质:紫铜 材料厚度:1.8mm | ||||||||
| RV 38-5 | #10 | 5.3 | 15.3 | 39.8 | 18.3 | 26.5 | 13.3 | |
